IOT-LINK Industrial IoT Gateway
Industrial IIoT Applications
Reliable Industrial Connectivity for Automation, Monitoring and Edge Computing

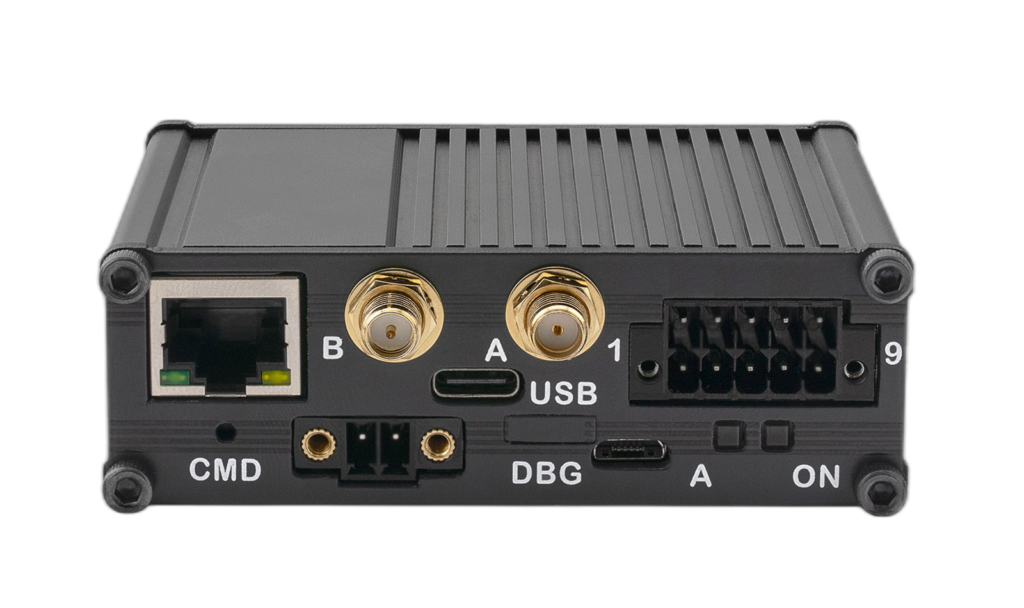

The IOT-LINK Industrial IoT Gateway is a compact, rugged and energy-efficient solution designed for industrial automation, remote monitoring and Industrial Internet of Things (IIoT) applications.
Powered by an NXP i.MX93 processor, the IOT-LINK provides flexible connectivity through configurable 4G LTE, WiFi 6, Gigabit Ethernet, RS485 and CAN-FD interfaces. Its industrial-grade design supports reliable operation in demanding environments, making it suitable for connecting industrial equipment, sensors and control systems to local networks and cloud-based platforms.
Key Features of the IOT-LINK Industrial IoT Gateway
Industrial-Grade Processing
NXP i.MX93 dual-core ARM Cortex-A55 processor for embedded computing and industrial IoT applications.
Flexible Network Connectivity
Configurable 4G LTE, WiFi 6, Bluetooth 5.4 and Gigabit Ethernet connectivity.
Industrial Communication Interfaces
Supports up to two RS485 or CAN-FD ports and three digital inputs or outputs.
Wireless Mesh Connectivity
Optional support for Bluetooth Mesh, Thread and Zigbee networks.
Linux-Based Software
Supports Debian Linux and Yocto BSP with an open software architecture.
Enhanced Security
Secure boot, TPM 2.0 and a hardware watchdog for improved device security and reliability.
Compact, Fanless Design
Durable aluminium enclosure measuring just 83 × 28 × 55 mm.
Wide Operating Temperature Range
Industrial configurations support temperatures from -40°C to +80°C.
Flexible Installation
Suitable for DIN-rail and wall mounting with compatible accessories.
IOT-LINK Specifications
- “Option” column specifies the configuration code required to have the particular feature.
- “+” means that the feature is always available
CPU, Memory and Storage | ||
| CPU | NXP i.MX9352, dual-core ARM Cortex-A55, 1.7GHz | |
| RAM | 1GB – 2GB, LPDDR4 | |
| Storage | 16GB – 64GB eMMC flash, soldered on-board | |
| Real-Time Co-processor | ARM Cortex-M33, 250Mhz | |
Network | ||
| Cellular Modem | 4G/LTE CAT-1 bis cellular module, SIMCOM SIM7672 Worldwide LTE, UMTS/HSPA | |
| 4G/LTE CAT-4 cellular module, Telit LE910 Worldwide LTE, UMTS/HSPA | ||
| SIM card socket | ||
| WiFi and Bluetooth | 802.11ax WiFi 6 and Bluetooth 5.4 BLE Implemented with NXP IW611 module 1x RP-SMA antenna connector | |
| Wireless Mesh | Bluetooth mesh, Thread, Zigbee Nordic Semiconductor nRF52840 / Silicon Labs MGM240 | |
| LAN | 1x Gbit Ethernet, RJ45 connector | |
I/O | ||
| RS485 CAN bus | Up-to 2x RS485 (2-wire) | CAN-FD ports Terminal-block connector | |
| Digital I/O | 3x digital outputs / inputs 24V compliant with EN 61131-2, terminal-block connector | |
| USB | 1x USB2.0 host port, type-C connector | |
| Debug | 1x serial console via UART-to-USB bridge, micro-USB connector | |
| NXP SDP programming port, micro-USB connector | ||
System | ||
| RTC | Real time clock with on-board coin-cell battery | |
| Watchdog | Hardware watchdog | |
| Security | Secure boot, implemented with i.MX93 AHAB module | |
| TPM 2.0, Infineon SLB9673 | ||
| Indicators | 1x programmable dual-color LED 1x power LED | |
| POE | Support for PoE (powered device) | |
Electrical Specifications | ||
| Power Supply | 12V-24V DC (-20%/+20%) Reverse voltage protection | |
| Power Consumption | 1W – 5W, depending on system load and configuration | |
Mechanical Specifications | ||
| Dimensions (H x W x D) | 83 x 28 x 55 mm | |
| Housing material | Aluminum | |
| Cooling | Passive cooling, fanless design | |
| Weight | 170 gram | |
Compliance | ||
| Regulatory | FCC, CE, UKCA | |
| EMC | EN 55032/5, EN 61000-6-2, EN 61000-6-3 | |
| Safety | EN/UL/IEC 62368-1 | |
Reliability and Environmental | ||
| MTTF | > 200,000 hours | |
| Warranty | 5 years | |
| Operation Temperature | Commercial: 0° to 60° C Industrial: -40° to 80° C | |
| Storage Temperature | -40° to 85° C | |
| Relative Humidity | 10% to 90% (non-condensing) | |
