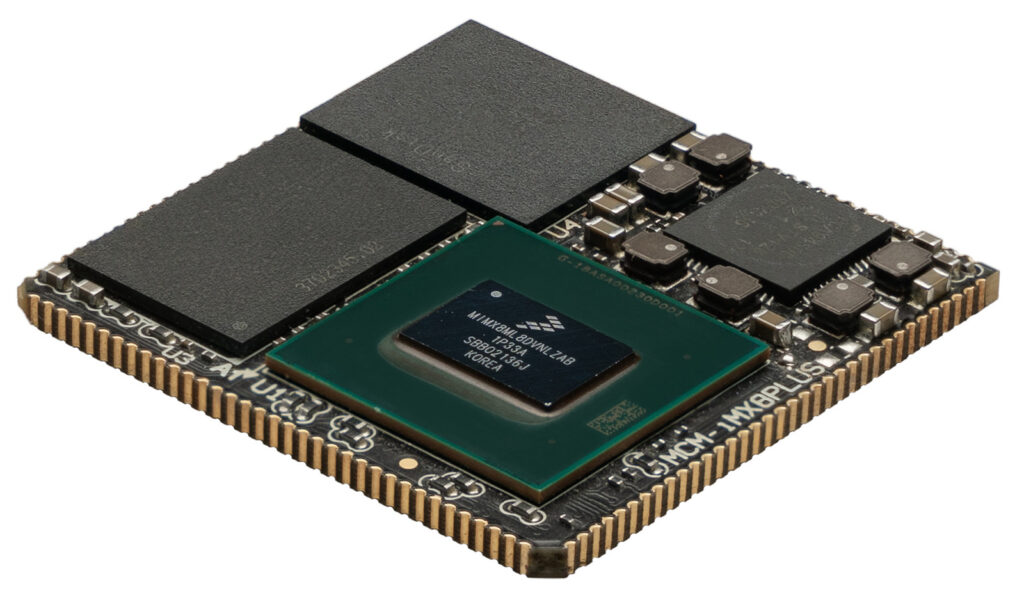

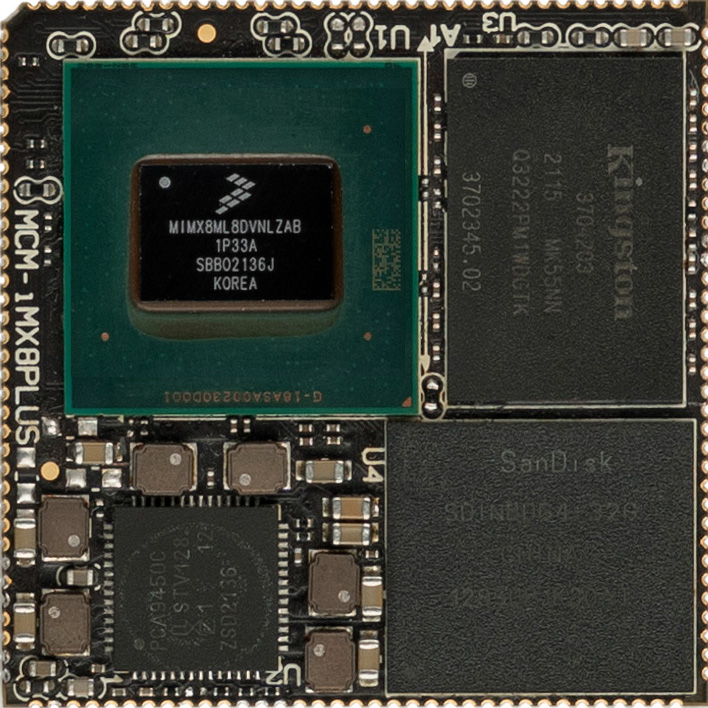

MCM-iMX8M-Plus: SMD solder-down
Ultra Miniature Form-factor - 30 x 30 mm, 5 gram
HIGH PERFORMANCE GRAPHICS AND IMAGE PROCESSING
Ideal for Space Constrained and Portable Systems
The NXP i.MX8M Plus processor family of processors features advanced implementation of a quad ARM® Cortex®-A53 core, which operates at speeds of up to 1.8 GHz. A general purpose ARM Cortex-M7, 800Mhz core processor is for low-power processing.
Top Features
CPU Core
| PU | NXP i.MX8M Plus Quad, quad-core ARM Cortex-A53, 1.8GHz |
| NXP i.MX8M Plus Quad, quad-core ARM Cortex-A53, 1.6GHz, industrial temp. grade | |
| NXP i.MX8M Plus QuadLite, quad-core ARM Cortex-A53, 1.8GHz | |
| Video Decode | 1080p60 HEVC/H.265, AVC/H.264, VP9, VP8 |
| Video Encode | 1080p60 HEVC/H.265, AVC/H.264 |
| GPU | GC7000UL GPU OpenGL ES 3.1/3.0, Vulkan, Open CL 1.2 FP, OpenVG 1.1 |
| NPU | AI/ML Neural Processing Unit, up to 2.3 TOPS |
| DSP | Tensilica® HiFi 4 DSP |
| Real-Time Co-processor | ARM Cortex-M7, 800Mhz |
I/O
| PCI Express | PCIe x1 Gen. 3.0 |
| USB | 2x USB3.0 dual-role ports |
| UART | Up to 4x UART |
| CAN bus | Up-to 2x CAN |
| SD/SDIO | Up to 2x SD/SDIO |
| SPI | Up to 2x SPI |
| I2C | Up to 5x I2C |
| PWM | Up to 4x general purpose PWM signals |
| GPIO | Up to 115x GPIO (multifunctional signals shared with other functions) |
Environmental and Reliability
| MTTF | > 200,000 hours | |
| Operation temperature (case) | Commercial: 0° to 70° C Extended: -20° to 70° C Industrial: -40° to 85° C | |
| Storage temperature | -40° to 85° C | |
| Relative humidity | 10% to 90% (operation) 05% to 95% (storage) | |
| Shock | 50G / 20 ms | |
| Vibration | 20G / 0 – 600 Hz | |
