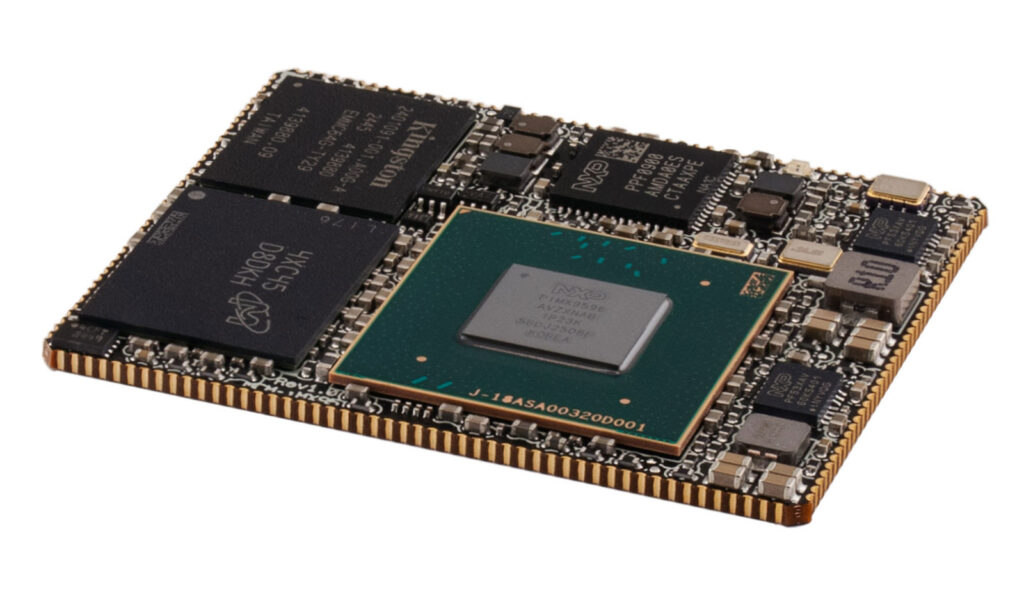

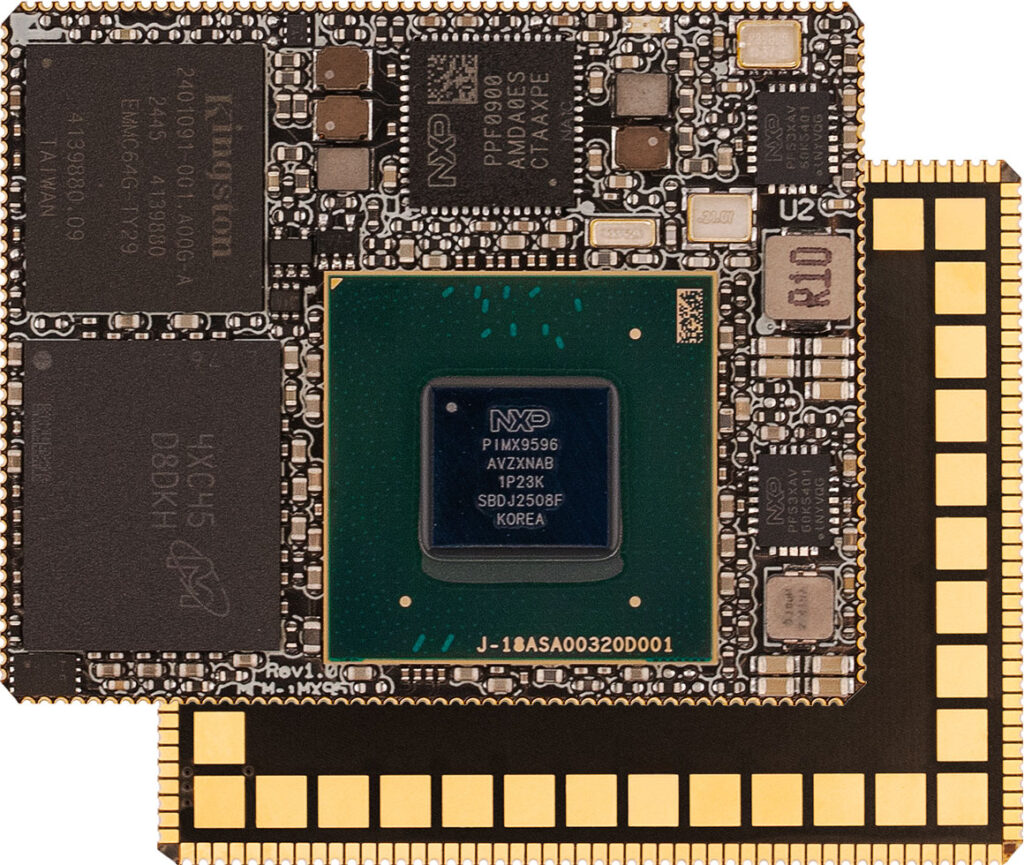

MCM-iMX95 - i.MX 95 SMD
High performance graphics and image processing
OPTIMIZED FOR SHOCK AND VIBRATIONS RESISTANCE
Ideal for space constrained and portable applications
The i.MX93 family of processors features advanced implementation of an ARM® Cortex®-A55 core, which operates at speeds of up to 1.8 GHz. A general purpose Cortex®-M4 core processor enables low-power processing.
With up to 16GB of onboard LPDDR5 memory.
Top Features
CPU Core
| CPU | NXP i.MX95, ARM Cortex-A55 up-to 6x cores, 1.8GHz |
| GPU | ARM Mali GPU OpenGL® ES 3.2, Vulkan® 1.2, OpenCL™ 3.0 |
| VPU | 4K video decode and encode |
| NPU | eIQ® Neutron NPU |
| Real-Time Co-processor | ARM Cortex-M7 + ARM Cortex-M33 |
I/O
| PCI Express | 2x PCIe Gen 3 1x lane |
| USB | 1x USB3.0 + 1x USB2.0 |
| UART | Up to 8x UART |
| CAN bus | Up-to 5x CAN |
| SD/SDIO | Up to 2x SD/SDIO |
| SPI | Up to 8x SPI |
| I2C | Up to 6x I2C |
| PWM | Up to 4x general purpose PWM signals |
| ADC | Up-to 4x general-purpose ADC inputs |
| GPIO | Up to 88x GPIO (multifunctional signals shared with other functions) |
Environmental and Reliability
| MTTF | > 200,000 hours | |
| Operation temperature (case) | Commercial: 0° to 70° C Extended: -20° to 70° C Industrial: -40° to 85° C | |
| Storage temperature | -40° to 85° C | |
| Relative humidity | 10% to 90% (operation) 05% to 95% (storage) | |
| Shock | 50G / 20 ms | |
| Vibration | 20G / 0 – 600 Hz | |
