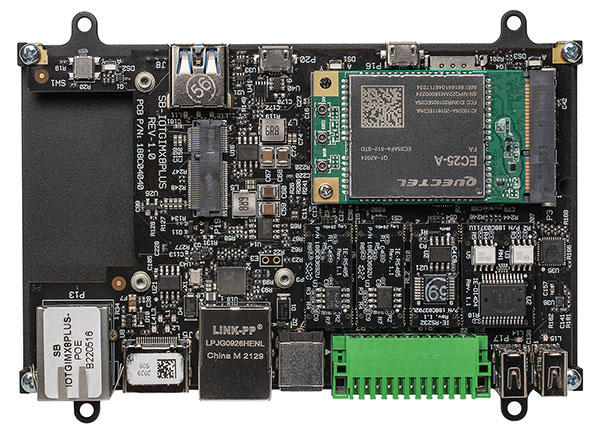

SBC-IOT-IMX8PLUS: NXP i.MX8M Plus Single Board Computer

Extensive wireless and wired connectivity

OPTIMIZED FOR INUDSTRIAL CONTROL AND MONITORING

Ideal for cost-sensitive systems

The i.MX8 Plus family of processors features advanced implementation of quad core ARM® Cortex®-A53 which operate at speeds of up to 1.8 GHz. A general purpose Cortex®-M4 core processor enables low-power processing.

Add to Enquiry

Top Features

CPU Core

CPUNXP i.MX8M Plus QuadLite, quad-core ARM Cortex-A53, 1.8GHz
NXP i.MX8M Plus Quad, quad-core ARM Cortex-A53, 1.8GHz
NPUAI/ML Neural Processing Unit, up to 2.3 TOPS
Real-Time
Co-processor		ARM Cortex-M7, 800Mhz

I/O

USB2x USB2.0 ports, type-A connectors (back panel)
1x USB3.0 port, type-A connector (front panel)
RS485 / RS232Up-to 3x RS485 (half-duplex) | RS232 ports
Isolated, terminal-block connector
CAN bus1x CAN bus port
Isolated, terminal-block connector
Additional 1x CAN bus port
Isolated, terminal-block connector
Digital I/O4x digital outputs + 4x digital inputs
Isolated, 24V compliant with EN 61131-2, terminal-block connector
Analog Input4x analog inputs, 0…10V / 4…20mA
Isolated, terminal block connector
Debug1x serial console via UART-to-USB bridge, micro-USB connector
Support for NXP SDP/UUU protocol, micro-USB connector
Expansion ConnectorExpansion connector for add-on boards
LVDS, SDIO, USB, SPI, I2C, GPIOs

Network

LAN2x 1000Mbps Ethernet ports, RJ45 connectors
+
WiFi and Bluetooth802.11ax WiFi and Bluetooth 5.3 BLE
Implemented with Intel WiFi 6E AX210 module
2x 2.4GHz / 5GHz rubber duck antennas
WB
Wireless MeshBluetooth mesh, Thread, Zigbee
Implemented with Nordic Semiconductor nRF52840 module installed in expansion connector
2.4GHz rubber duck antenna
FXWMN
Cellular4G/LTE CAT4 cellular module, Quectel EC25-E (EU bands)
JEC25E
4G/LTE CAT4 cellular module, Quectel EC25-A (US bands)
JEC25A
4G/LTE CAT4 cellular module, Quectel EG25-GGD (global bands)
JEG25G
4G/LTE CAT4 cellular module, Telit LE910C4 (global bands)
JT910G
SIM card socket
+
Cellular rubber duck antenna
JEC25x or JEG25G
GNSSGPS
Implemented with Quectel EC25 module
JEC25x or JEG25G

Feature Highlights

  • NXP i.MX8M-Plus CPU, quad-core Cortex-A53
  • Up to 8GB RAM and 128GB eMMC
  • LTE/4G modem, WiFi 802.11ax, Bluetooth 5.3
  • 2x LAN, USB3.0, 2x USB2.0 and 2x CAN bus
  • Up-to 3x RS485 | RS232 and digital I/O
  • Modbus RTU, Modbus TCP and MQTT
  • Custom I/O expansion boards

NXP i.MX8X Processor Family

  • Designed for reliability and 24/7 operation
  • Industrial temperature range of -40C to 80C
  • Secure boot, TPM and Hardware Watchdog
  • Wide input voltage range of 8V to 36V and PoE client
  • 5 year warranty and 15 year availability
