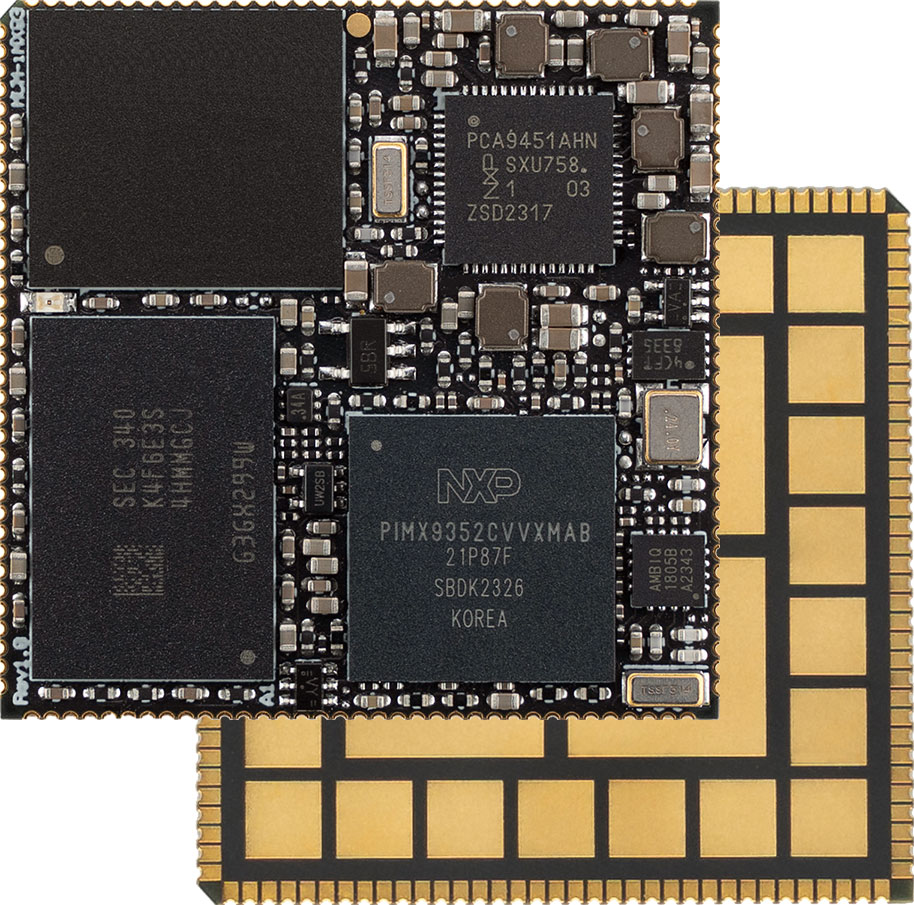

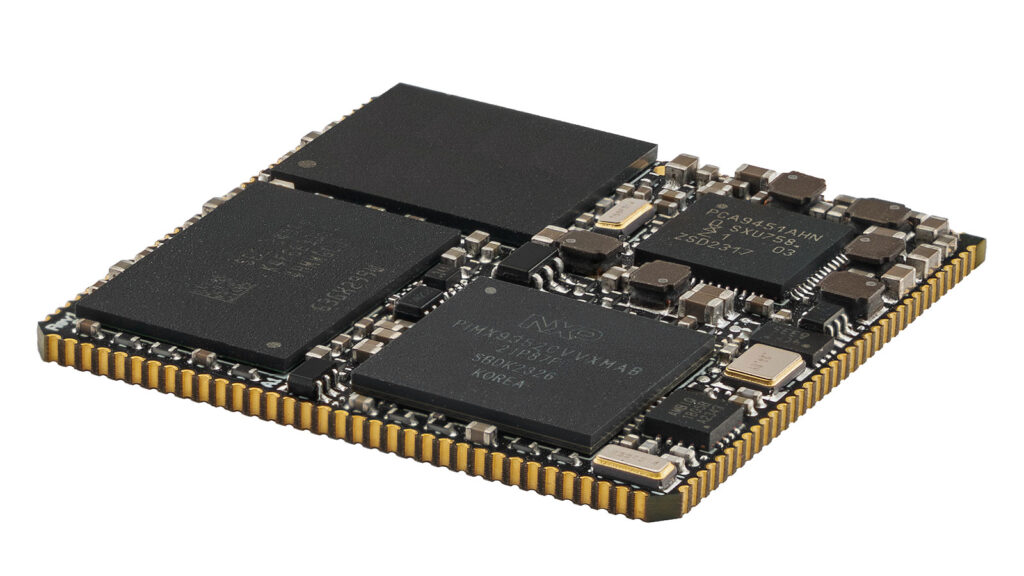

MCM-iMX93: i.MX93 SMD
Smallest foot-print and lowest cost
HIGH PERFORMANCE GRAPHICS AND IMAGE PROCESSING
Ideal for Space Constrained and Portable Systems
The i.MX93 family of processors features advanced implementation of a dual ARM® Cortex®-A55 core, which operates at speeds of up to 1.7 GHz. A general purpose Cortex®-M4 core processor enables low-power processing.
Up to 2GB LPDDR4 and 64GB eMMC
Top Features
CPU Core
| CPU | NXP i.MX9352, dual-core ARM Cortex-A55, 1.7GHz |
| NXP i.MX9331, single-core ARM Cortex-A55, 1.7GHz | |
| NPU | AI/ML Neural Processing Unit Arm® Ethos™ U-65 microNPU |
| Real-Time Co-processor | ARM Cortex-M33, 250Mhz |
I/O
| USB | 2x USB2.0 dual-role ports |
| UART | Up to 8x UART |
| CAN bus | Up-to 2x CAN-FD |
| SD/SDIO | 2x SD/SDIO |
| SPI | Up to 8x SPI |
| I2C | Up to 6x I2C |
| I3C | 1x I3C |
| ADC | 4x general-purpose ADC channels |
| PWM | Up to 6x general purpose PWM signals |
| GPIO | Up to 80x GPIO |
Environmental and Reliability
| MTTF | > 200,000 hours | |
| Operation temperature (case) | Commercial: 0° to 70° C Extended: -20° to 70° C Industrial: -40° to 85° C | |
| Storage temperature | -40° to 85° C | |
| Relative humidity | 10% to 90% (operation) 05% to 95% (storage) | |
| Shock | 50G / 20 ms | |
| Vibration | 20G / 0 – 600 Hz | |
