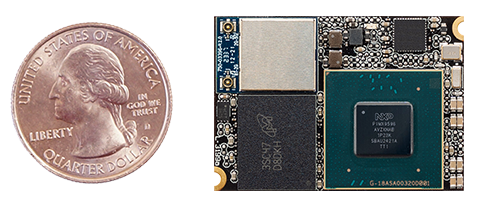

UCM-iMX95: NXP i.MX 95 SOM
High performance graphics and image processing
OPTIMIZED FOR INDUSTRIAL APPLICATIONS
UCM pin2pin SOM family pin-out and form-factor
The i.MX95 family of processors features advanced implementation of a ARM® Cortex®-A55 core, which operates at speeds of up to 1.8 GHz. A general purpose Cortex®-M4 core processor enables low-power processing.
With up to 16GB of onboard LPDDR5 memory.
Top Features
CPU Core
| CPU | NXP i.MX95, ARM Cortex-A55 up-to 6x cores, 1.8GHz |
| GPU | ARM Mali GPU OpenGL® ES 3.2, Vulkan® 1.2, OpenCL™ 3.0 |
| VPU | 4K video decode and encode |
| NPU | eIQ® Neutron NPU |
| Real-Time Co-processor | ARM Cortex-M7 + ARM Cortex-M33 |
I/O
| PCI Express | 2x PCIe Gen 3 1x lane |
| USB | 1x USB3.0 + 1x USB2.0 |
| UART | Up to 8x UART |
| CAN bus | Up-to 5x CAN |
| SD/SDIO | Up to 2x SD/SDIO |
| SPI | Up to 8x SPI |
| I2C | Up to 7x I2C |
| PWM | Up to 6x general purpose PWM signals |
| ADC | Up-to 8x general-purpose ADC inputs |
| GPIO | Up to 94x GPIO (multifunctional signals shared with other functions) |
Environmental and Reliability
| MTTF | > 200,000 hours | |
| Operation temperature (case) | Commercial: 0° to 70° C Extended: -20° to 70° C Industrial: -40° to 85° C | |
| Storage temperature | -40° to 85° C | |
| Relative humidity | 10% to 90% (operation) 05% to 95% (storage) | |
| Shock | 50G / 20 ms | |
| Vibration | 20G / 0 – 600 Hz | |
