i.MX93: NXP iMX9 SoM

Ultra Miniature Form-factor and Power Efficiency

HIGH PERFORMANCE GRAPHICS AND IMAGE PROCESSING

Ideal for Space Constrained and Portable Systems

The i.MX93 family of processors features advanced implementation of a dual-core ARM Cortex-A55, which operates at speeds of up to 1.7 GHz.

With up to 2GB of onboard LPDDR4 memory.

Add to Enquiry
NXP i.MX8M Mini system on module (SoM) with ARM processor and compact embedded design

Top Features

CPU Core

CPUNXP i.MX9352, dual-core ARM Cortex-A55, 1.7GHz
NXP i.MX9331, single-core ARM Cortex-A55, 1.7GHz
NPUAI/ML Neural Processing Unit
Arm® Ethos™ U-65 microNPU
Real-Time
Co-processor		ARM Cortex-M33, 250Mhz

I/O

USB2x USB2.0 dual-role ports
UARTUp to 7x UART
CAN busUp-to 2x CAN-FD
SD/SDIO1x SD/SDIO
Additional 1x SD/SDIO
SPIUp to 7x SPI
I2CUp to 6x I2C
ADCUp-to 4x general-purpose ADC channels
PWMUp to 6x general purpose PWM signals
GPIOUp to 79x GPIO (multifunctional signals shared with other functions)

Environmental and Reliability

MTTF> 200,000 hours
Operation temperature (case)Commercial: 0° to 70° C
Extended: -20° to 70° C
Industrial: -40° to 85° C
Storage temperature-40° to 85° C
Relative humidity10% to 90% (operation)
05% to 95% (storage)
Shock50G / 20 ms
Vibration20G / 0 – 600 Hz

Feature Highlights

  • Up to 2GB LPDDR4 and 64GB eMMC
  • LVDS, MIPI-DSI and MIPI-CSI
  • Certified 802.11ac WiFi, BT 5.3
  • GbE, RGMII, 2x USB, 2x CAN-FD, 7x UART
  • Wide temperature range of -40C to 85C

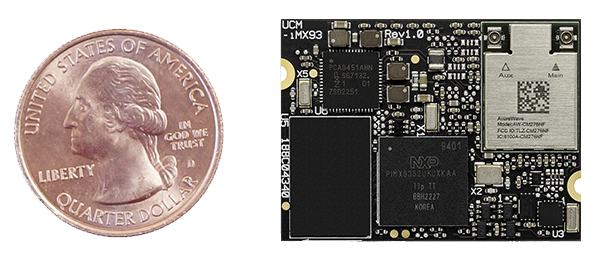

Ultra Miniature Form-Factor

  • Dual-core ARM Cortex-A55 CPU, 1.7GHz
  • Integrated AI/ML Neural Processing Unit
  • Real-time ARM Cortex-M33 co-processor
  • Tiny size and weight – 28 x 38 x 4 mm, 7 gram
  • Availability guaranteed until 2038
